Standard Packaging

1 x 20 contains   8 pallets = +/- 21.00 m3
1 x 40 contains 12 pallets = +/- 32.00 m3

Thick Width Length Pcs/pallet Pcs/m3
2.3 1220 2440 375 146
2.5 1220 2440 345 134
2.7 1220 2440 325 124
3 1220 2440 285 112
3.6 1220 2440 250 93
4 1220 2440 225 84
4.4 1220 2440 204 76
5 1220 2440 180 67
5.5 1220 2440 164 61
6 1220 2440 150 56
7 1220 2440 125 48
7.5 1220 2440 120 45
8 1220 2440 113 42
9 1220 2440 100 37
11 1220 2440 82 31
12 1220 2440 75 28
14 1220 2440 64 24
15 1220 2440 60 22
16 1220 2440 56 21
17 1220 2440 53 20
18 1220 2440 50 19
21 1220 2440 43 16
22 1220 2440 41 15
25 1220 2440 36 13
30 1220 2440 30 11

Unloading Sequences

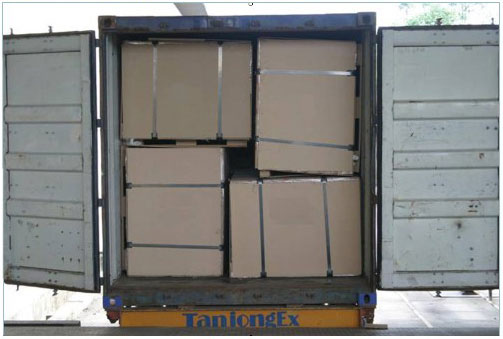

STEP 1: Unloading from the container

When unloading the 4 bundles in front, follow sequence 1, 2, 3 and 4

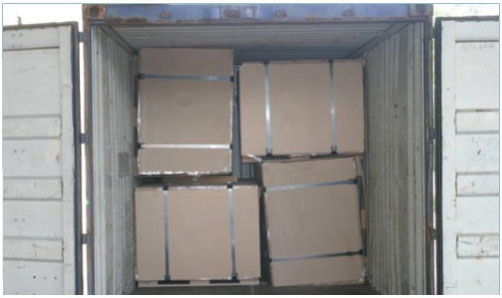

When unloading the 4 bundles in front, follow sequence 5, 6, 7 and 8

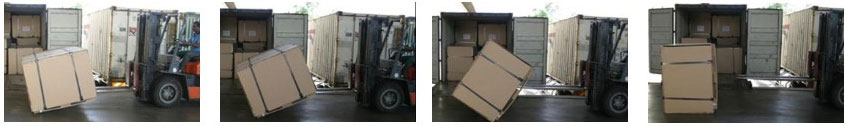

STEP2: Tilting a bundle

These steps are applicable for bundle 2, 4, 6 and 7

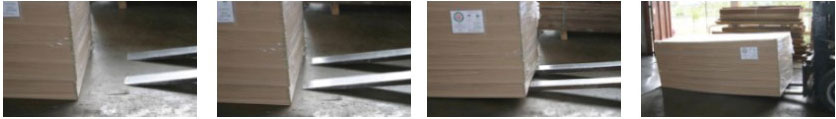

STEP3: Picking up a bundle

Picking up a bundle without skid underneath. These steps are applicable for bundle 3, 4 and 7

* FORKLIFT CAPACITY MUST BE AT LEAST 3.5 TONS
